| Brand Name: | HB |
| Model Number: | HB-RMT200 |
| MOQ: | 100rolls |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000rolls/week |

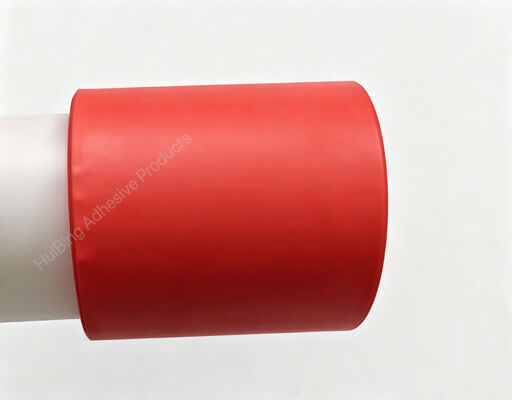

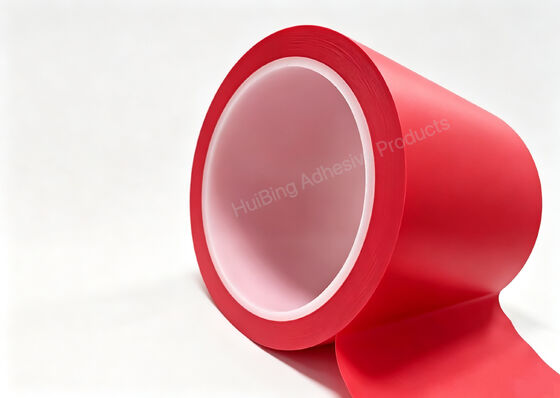

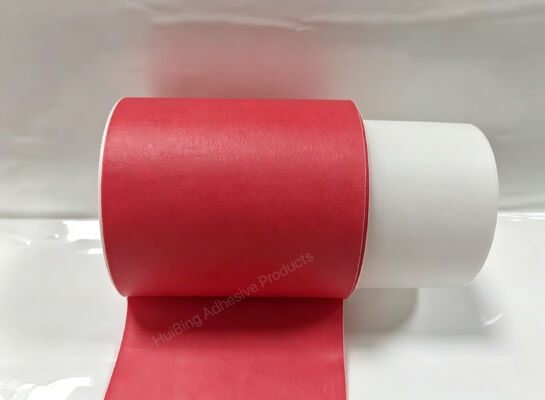

This red masking tape is a high-grade composite tape, constructed with a red masking paper backing and a high-performance silicone adhesive system, reinforced by a PET polyester film layer. It delivers exceptional mechanical strength, abrasion resistance, and tear resistance, ensuring reliable performance in demanding industrial processes.
After high-temperature lamination, the tape can be cleanly removed without leaving any residue, making it ideal for precision applications. It is specifically designed for masking and protection during printed circuit board (PCB) soldering and wave soldering operations, effectively preventing electroplating solutions from penetrating sensitive areas.
| Item | Specification | Standard / Remark |
|---|---|---|
| Total Thickness | 200 ± 20 μm | GB/T 7125-2014 |
| Adhesion Strength | > 1000 g / 25 mm (180°) | GB/T 2792-1998 |
| Temperature Resistance | 180°C for 30 minutes | Oven test |
Dongguan Huibing Adhesive products Co., Ltd. is a professional adhesive products manufacturer located in Dongguan City, China, focusing on the sales and export of various adhesive tape products.
We mainly supply all kinds of tapes, including clear packing tape, colored tape, double-sided tape, masking tape, printed logo tape, carton sealing tape and industrial adhesive tapes. Our products are widely used in logistics packaging, electronic industry, daily household use, industrial fixing and construction fields.
We insist on stable quality, competitive price, fast delivery and good after-sales service. We support stock supply and customized sizes, thickness, viscosity and logo printing services.With reliable product quality and mature supply chain system, our products are exported to many countries around the world and have won high recognition from global customers.
We sincerely welcome customers from all over the world to establish long-term and stable cooperative partnerships.
It is a high-grade tape designed for masking and protection in PCB soldering, wave soldering, and electroplating processes, where it prevents solution penetration and residue after high-temperature exposure.
It can withstand a temperature of 180°C for 30 minutes, verified through oven testing.
The total thickness is 200 ± 20 μm, tested per the standard GB/T 7125-2014.
No, it is formulated with a high-performance silicone adhesive that can be cleanly removed without leaving residue after high-temperature lamination.
All specifications are tested under standard conditions: temperature 23 ± 1°C, humidity 50 ± 5%, on a steel plate, with a peel speed of 300 mm/min and a peel angle of 180°.
The adhesion strength is greater than 1000 g / 25 mm (180°), tested according to the standard GB/T 2792-1998.
