| Brand Name: | HB |
| Model Number: | HB-Die Cutting PTFE Film Tape |
| MOQ: | 100rolls |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000rolls/week |

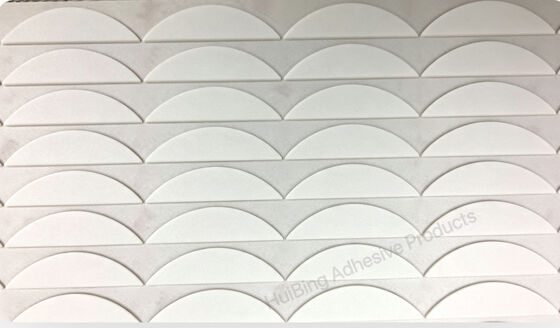

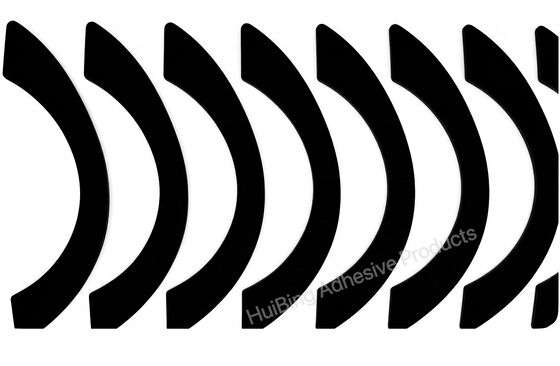

Na Modified PTFE Film Tape Products Thickness 0.6mm PTFE Die Cutting
All the thin soft plastic can be die-cut. The names of them are adhesive tape, PTFE, mylar, EVA, silicon rubber, light diffuser, foam sponge, die cut film, conductive parts, velcro, etc.They are needed in computer, home appliance,optoelectronics, toy, auto, leather product, mobile, commincation product and other machine or equipment.
The following is one of the machines parameter we use to die cut our products:
| item | unit | 270# machine | 350# machine |
| material width | mm | 280 | 360 |
| max diecut area | mm | 250(l)*270(w) | 290(l)*350(w) |
| max speed | pcs/h | 18000 | |
| rated speed | pcs/h | 18000 | |
| travel distance | mm | 20 | |
| travel adjustment | mm | ±3 | |
| pulling precision | mm | ±0.10(speed≥12000pcs/h) | |
| ±0.12(12000pcs/h＜speed≤15000pcs/h) | |||
| ±0.15(15000pcs/h＜speed≤18000pcs/h) | |||
| lower board dimension | mm | 270*415*22 | 310*495*22 |
| upper board dimension(thick) | mm | 280*350*33.6 | 320*430*33.6 |
| upper board dimension(thin) | mm | 280*350*18 | 320*430*18 |
| lubriction method | - | interim automatic oil lubrication | |
| die types | - | wood die,plywood die, metal etching or engraving die. | |
| total power | kw | 4.0 | 5.5 |
| total dimension | mm | 2200*1250*2000 | 2250*1300*2000 |
| machine net weight | kg | 1600 | 1800 |
