| Brand Name: | HB |
| Model Number: | HB-Die Cut PET Tape |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000pcs/week |

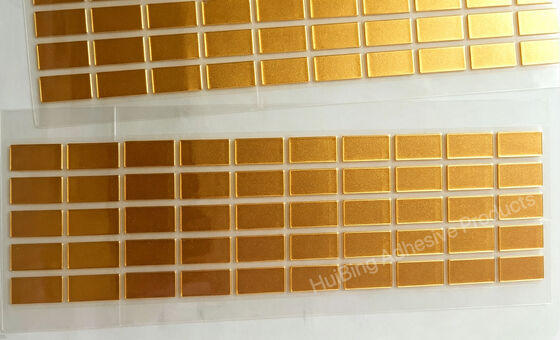

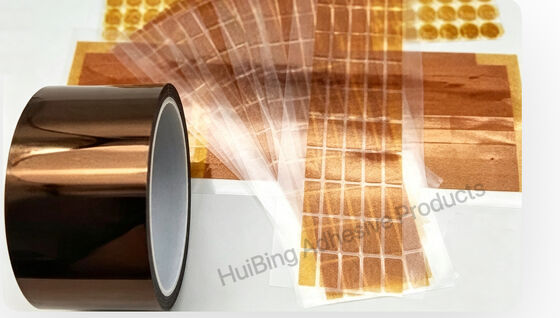

PI tape consists of polyimide and silicon PSAs, which required fluoroplastic film when die-cutting. The coating precison reaches ±2.5μm without scratch. This product, with hight temperature resistance and good chemical resistance, suits for SMT PCBA, battery, high-level appliance, voltage transformer and motor insulation.
Storage temprature: 5-25℃, relative humidity 65% dry place, avoid sunshine.
| glue | siloxane adhesive | composition | PoIyimide | 25microns |
| glue thickness | 40microns | total thickness | 65microns | |
| color | amber etc. | usage | PCBA | |
| item | unit | data | remarks | |
|---|---|---|---|---|
| peeling force | g/in | 50+/-50 | ||
| tensil stress | MD | % | 60 | |
| TD | % | 60 | ||
| heat resistance | excellent | 260°/30minutes | ||
| solubility | good | 20%HCL,NaOH/20hours | ||
| expansion force | Kg/in | 8 | ||
