| Brand Name: | HB |
| Model Number: | HB-APF25 |
| MOQ: | 100rolls |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10000rolls/week |

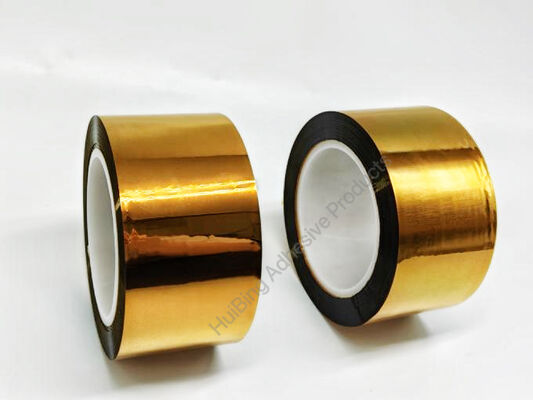

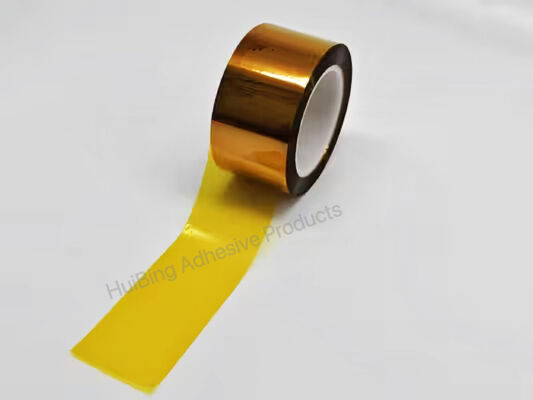

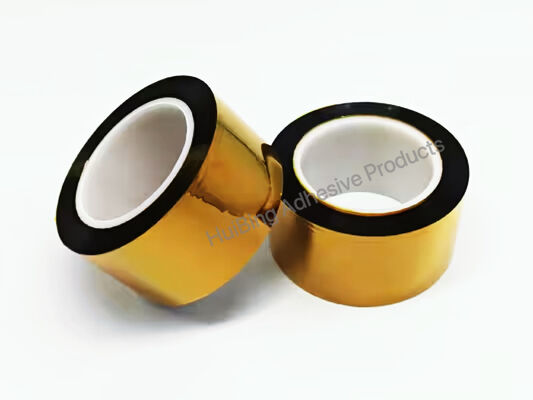

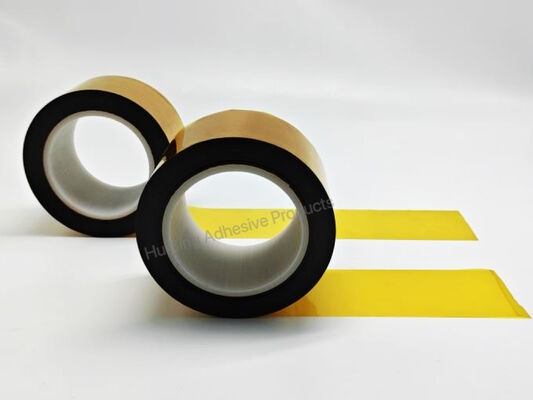

The HB-APF25 Series is a 25μm polyimide (PI) film manufactured via polycondensation of pyromellitic dianhydride (PMDA) and 4,4'-oxydianiline (ODA), followed by casting, imidization, and stretching. This amber-colored film offers exceptional thermal stability, electrical insulation, and mechanical strength. With a thickness of 25±3μm, PI25 withstands 288°C±5°C for 10 seconds, exhibits low water absorption (<4.0%), and provides excellent dielectric properties. It is supplied in rolls on a 76mm rigid paper core, ideal for demanding electronic, and industrial applications.
| Parameter | Specification | Test Standard |
|---|---|---|
| Thickness | 25±3μm | GB/T7125-2014 |
| Water Absorption Rate | <4.0% | – |
| Relative Permittivity (50Hz) | ≤3.9 | Voltage varies with thickness |
| Dielectric Dissipation Factor (50Hz) | ≤4.0×10⁻³ | – |
| Electrical Strength (Average) | ≥50 MV/m | – |
| Electrical Strength (Individual) | ≥40 MV/m | – |
| Density | 1420±20 kg/m³ | – |
| Shrinkage Rate 200°C | ≤0.3% | Oven Test |
| Temperature Resistance | 288°C±5°C / 10 sec | Oven Test |
| Core Inner Diameter | 76mm (rigid paper core) | – |
| Test Conditions | 23±1°C, 50±5% RH | – |
HB-APF25 polyimide film is trusted across multiple high-reliability industries:
