| Brand Name: | HB |
| Model Number: | HB-KT001 |
| MOQ: | 100rolls |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000rolls/week |
| Parameter | Specification |
|---|---|

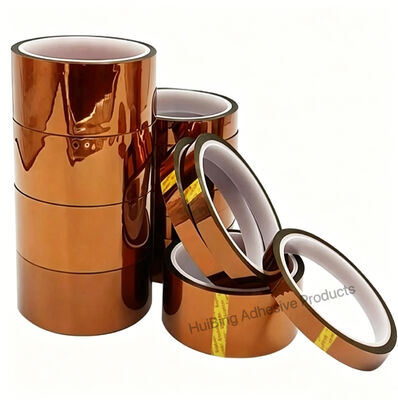

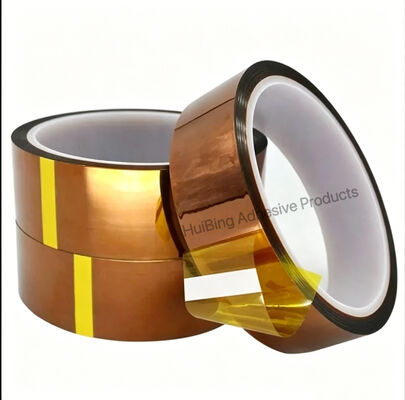

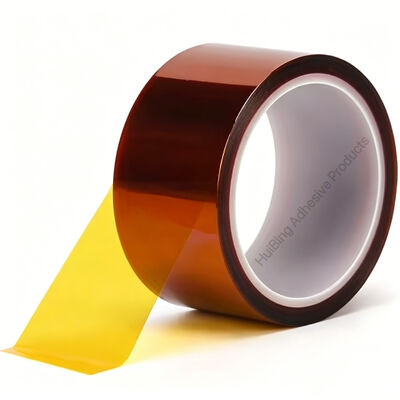

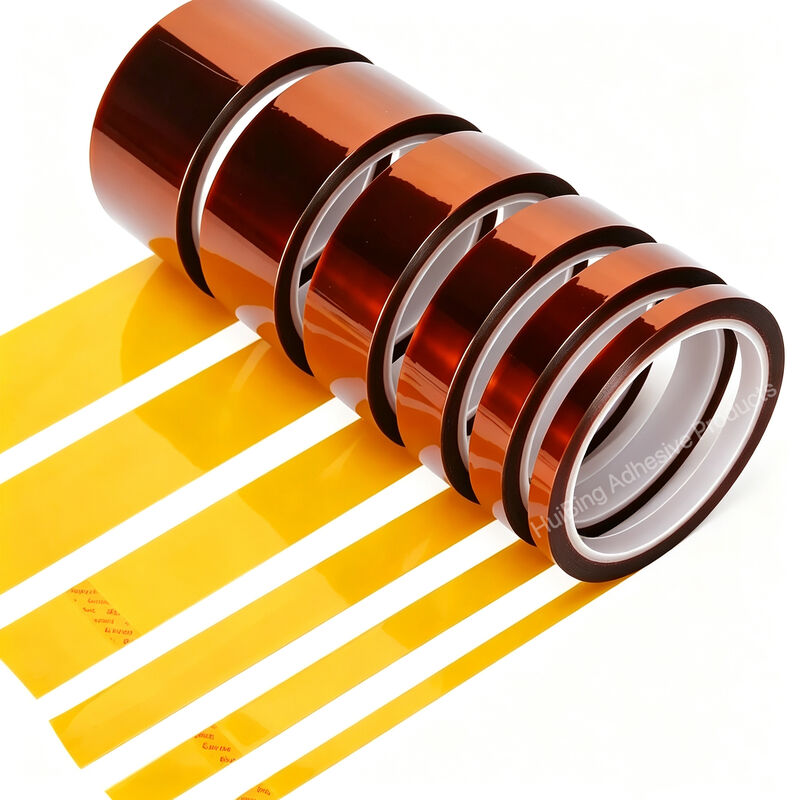

| Article Name | PI ESD TAPE |
| Surface Material | Polyimide FILM |
| Color | BROWN |
| Thickness (mm) | 0.025mm |
| Smoothness | 0.06±0.005mm |
| Pull-Resistance (kg/25mm) | 13 |
| Adhesive Base | Silicon |
| Voltage Resistance (KV) | ≥4 |
| Dry Coating Thickness (mm) | 0.035±0.005 |
| Holding Resistance (hr/kg*25mm²) | 48+ |
| Dry Coating Weight (gm/m) | 22±5 |
| Weathering Resistance | GOOD |
| Initial Tack (No/Ball) | ≤8 |
| Temperature Range (°C) | –40℃～280℃ |
| Peel Adhesion (KG/25mm) | ≥0.45 |
| Max Temperature (°C) | 320℃*100s |
| Elongation at Break (%) | 45 |
| Insulation Resistance | 1.0*10⁶-⁸ |
| Standard Length (m) | 33 |
| Standard Width (mm) | 500 |
| Flame Resistance | GOOD |
| Stock Period | Six Months |
| Chemistry Resistance | GOOD |
| Liquor Resistance | GOOD |
| Stock Environment | 30℃*60% |
